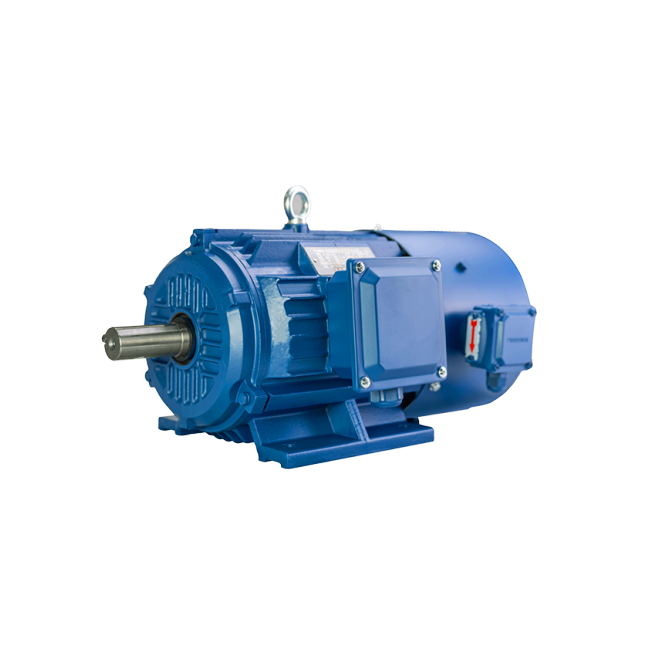

FLV series variable frequency three phase asynchronous AC motor

FLV series variable frequency adjustable speed electric motor is driven by frequency converter with IC416 cooling method

Message

$82.80

Have chosenThere are no options selected.

*Output Power
--- Please Select ---
Start To Order

Add To Cart Successfully!

SEND INQUIRY
FLV series variable frequency three phase asynchronous AC motor
FLV series variable frequency three phase asynchronous AC motor
FLV series variable frequency three phase asynchronous AC motor

FLV series variable frequency three phase asynchronous AC motor

FLV series variable frequency adjustable speed electric motor is driven by frequency converter with IC416 cooling method

  • Item No.FLV Electric Motor
    MOQ1 Piece

Available Options

Output Power
Customization:

3d-iconOnline customization Customise Now

Customized logo (Min. Order: 1*20ft container Piece)

Customized packaging (Min. Order: 10*20ft container Piece)

Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $82.80 / Piece
$82.80
You save $ -82.80

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Packaging & Delivery

Selling Units:
20ft container
Lead Time:
Quantity(20ft container)12 - 56 - 1011 - 30>30
Est. Time(days)30506090To be negotiated



Description

FLV series variable frequency adjustable-speed converter-fed three phase induction motor is a kind of special motor which driven by frequency converter, rotating speed of the FLV series motors can be regulated stepless by frequency converter, thus enable energy saving and automatic control of the motors. FLV series motors are fitted with ventilation fan which provide better cooling effect to ensure motors running at various speed.

FLV series motors are suitable for transmissions by which speed-regulation is needed, are widely used in light industries, metallurgy industries, textile industries, chemical industries, machine tool industries etc. while fitted with highly accurate sensor, the motors can achieve highly accurate operation of closed loop.

To be convenient for users, dimensions and rated output of FLV series motors are same as those of three phase induction motors, also in conformity with IEC 60072-1:1991.



Technical Parametersn

Rated Power:0.37kW-355kW

Frame Size:H80-H355

Frame Material:Cast Iron

Rated Voltage:220V-1140V

Rated Frequency:5Hz-100Hz

Ingress protection:IP54/IP55/IP56/IP65/IP66

Insulation Class:F/H

Work Duty:S1-S6



Technical Bright Spots & Consumer Benefits

Technical Bright Spots

1. Stepless speed regulation can be realized in the system composed with frequency conversion speed regulation device
2. High reliability and easy maintenance
3. Equipped with independent cooling fan
4. Be fitting with highly accurate sensor

Consumer Benefits

1. The automatic control on the motor can reduce the cost of energy
2. Reduce the equipment maintenance costs
3. Good cooling effect can leads to the better reliability
4. The motors can achieve highly accurate aperation of closed loop. That can improve the customer's production efficiency and the products quality
